5G INSEEGO ROUTER FX2000 WITH DIAL TONE INSTALLATION GUIDE

Installing a 5G Router is easier than expected. Follow this step by step guide to ensure proper connectivity.

INSEEGO 5G FX2000- PACKAGE CONTENTS:
Inside the box you will find a...
  1.  Welcome Card
  2.  5G Router FX2000


  1.  Ethernet/Data Cable

  1. Wall adapter power supply



GET TO KNOW YOUR INSEEGO: For this installation, two ports will be used. The Power Port will power up your router. The LAN Port will provide stability to your devices.



GET TO KNOW THE INDICATOR LED LIGHT:



TO INSTALL YOUR ROUTER & DIAL TONE, FOLLOW THESE SIMPLE STEPS

Step 1: Plug the Power Cord in to the Power Port and power the device.

Once the Multicolored LED light turns blue, WI-FI will immediately be active. The network name (SSID) and password can be found at the bottom of the device.
(If applicable) Power all devices using their corresponding Power Cords.

Step 2: Plug the Ethernet/Data Cable to the LAN Port.


Step 3. Plug the Ethernet/Data Cable to Port 1 of the Network Switch.

(If applicable) The Switch may need to be set to the ON position.

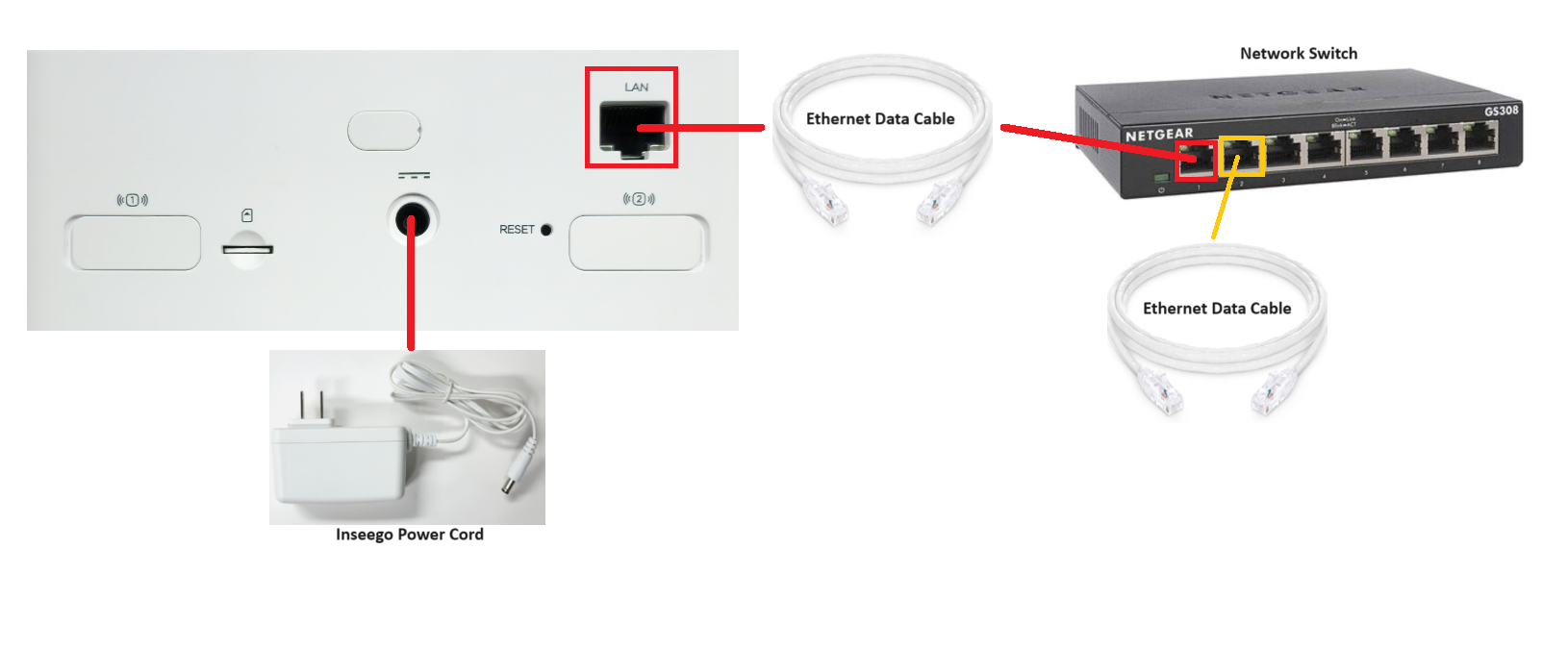

Step 4. Plug a second Ethernet/Data Cable to Port 2 of the Network Switch.

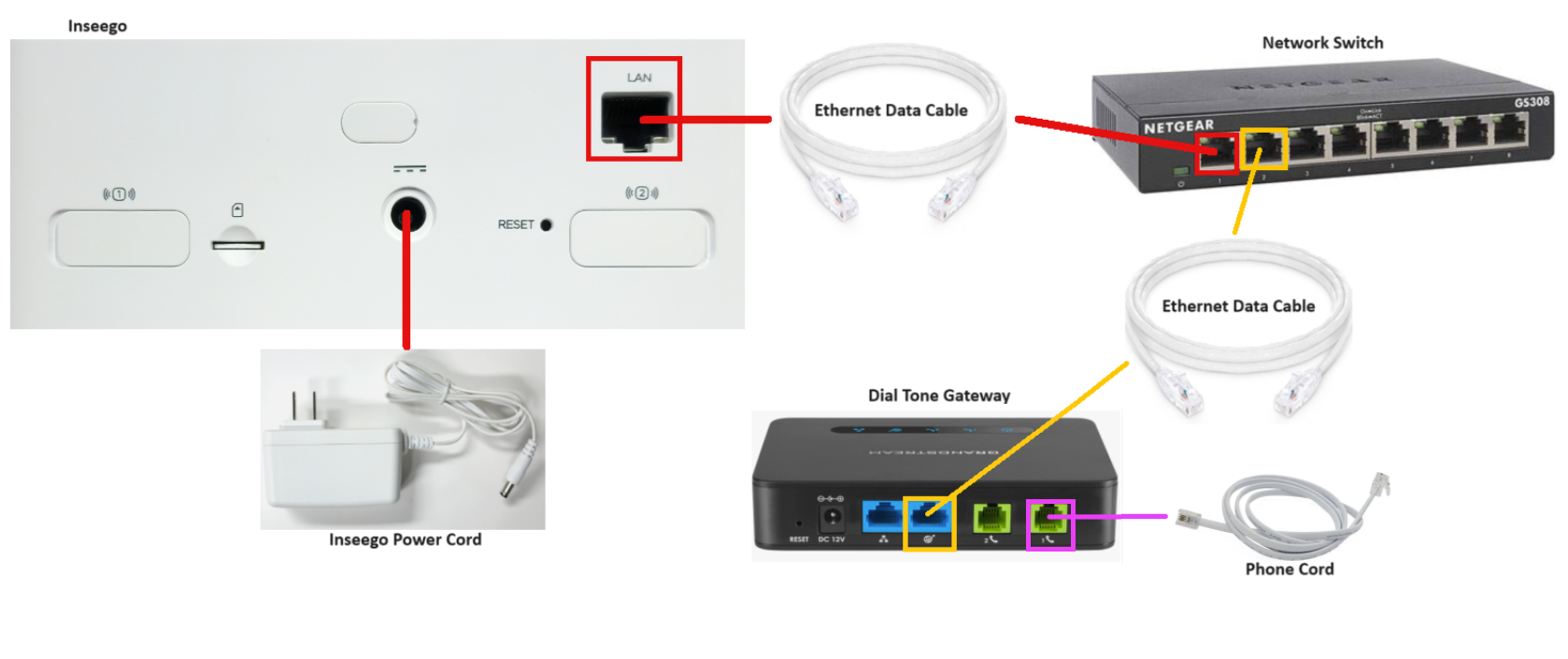

Step 5. Plug the second Ethernet/Data Cable to the Internet Port on the Dial Tone Gateway.
Dial Tone Gateway is also known as an ATA.
Dial Tone Gateway Internet Port.


Step 6. Plug the phone cord to the #1 Phone Line on the Dial Tone Gateway.

Dial Tone Gateway Phone Line.

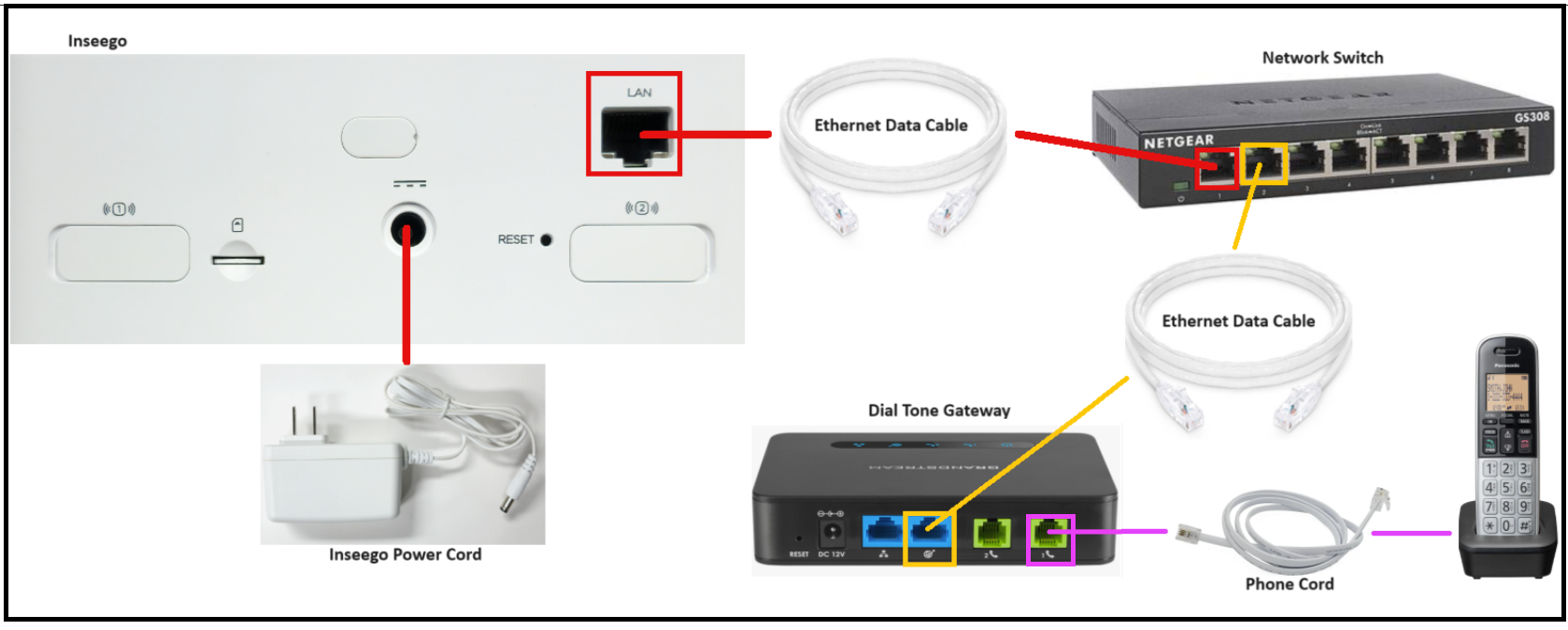

Step 7. Plug the Phone Cord to your Phone.



Upon completion, your phone will have dial tone and you can begin making calls.
