5G INSEEGO ROUTER FX2000 INSTALLATION

5G INSEEGO ROUTER FX2000 INSTALLATION GUIDE

Installing a 5G Inseego Router is easier than expected. Follow this step by step guide to ensure proper connectivity.

INSEEGO 5G FX2000- PACKAGE CONTENTS:
Inside the box you will find a...
  1.  Welcome Card

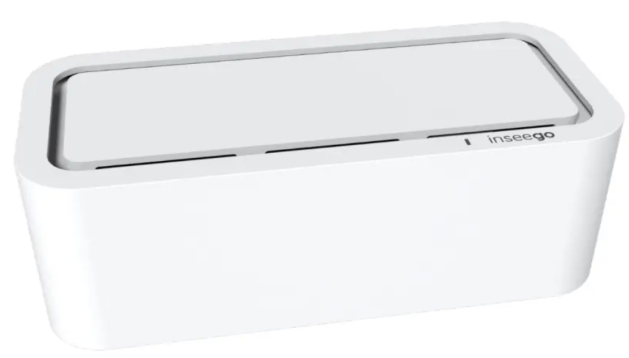

  2.  5G Router FX2000

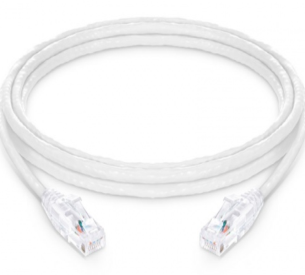

  1.  Ethernet/Data Cable

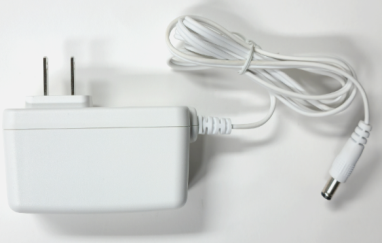

  1. Wall adapter power supply

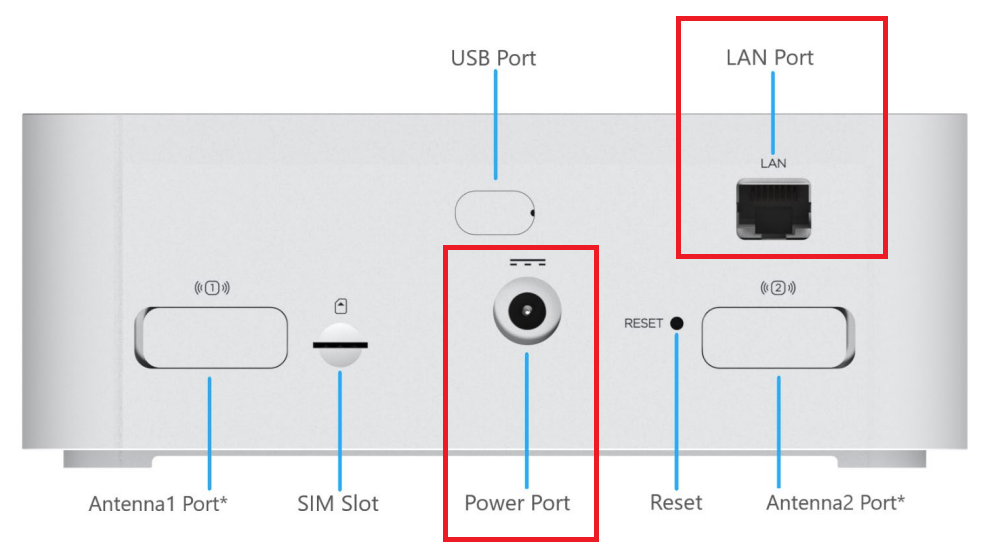

GET TO KNOW YOUR INSEEGO: For this installation, two ports will be used. The Power Port will power up your router. The LAN Port will provide stability to your devices.

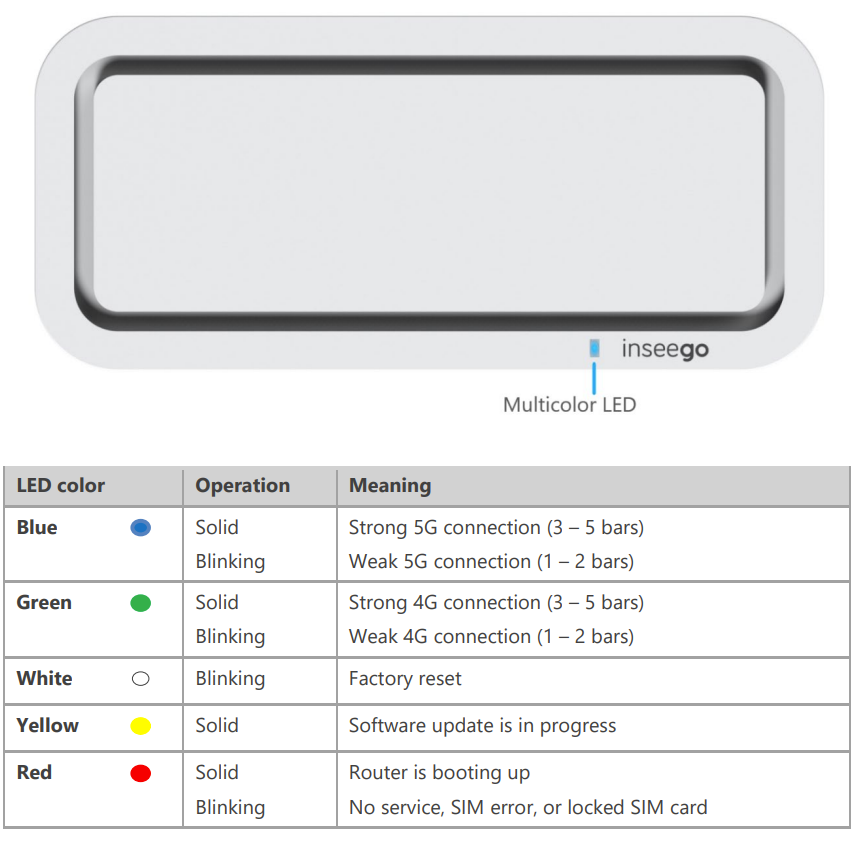

GET TO KNOW THE INDICATOR LED LIGHT:



TO INSTALL YOUR ROUTER, FOLLOW THESE SIMPLE STEPS

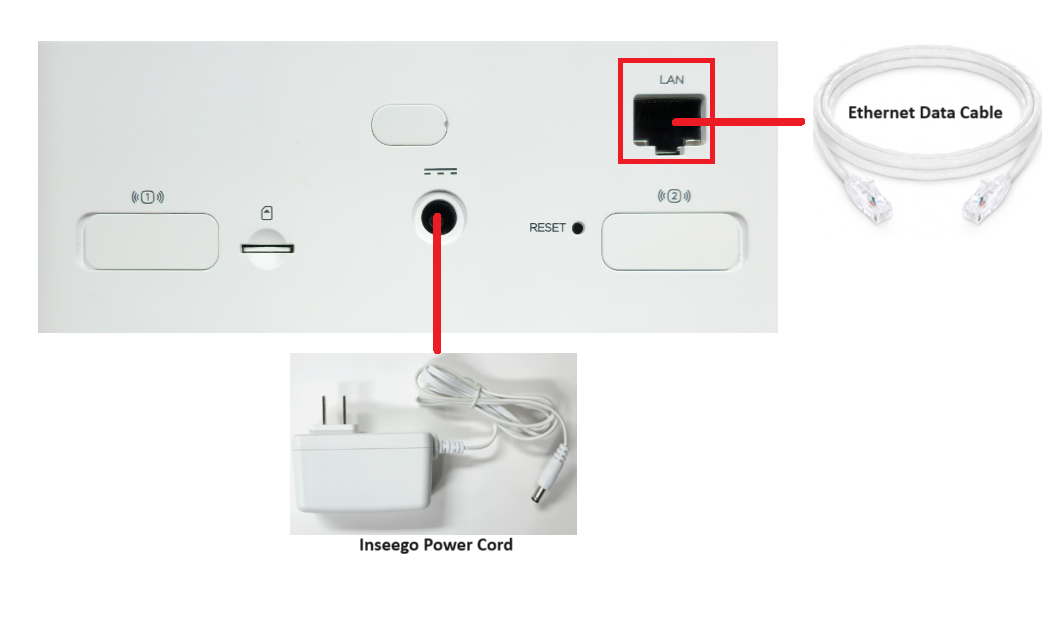

Step 1: Plug the Power Cord in to the Power Port and power the device.

Once the Multicolored LED light turns blue, WI-FI will immediately be active. The network name (SSID) and password can be found at the bottom of the device.
(If applicable) Power all devices using their corresponding Power Cords.

Step 2: Plug the Ethernet/Data Cable to the LAN Port.

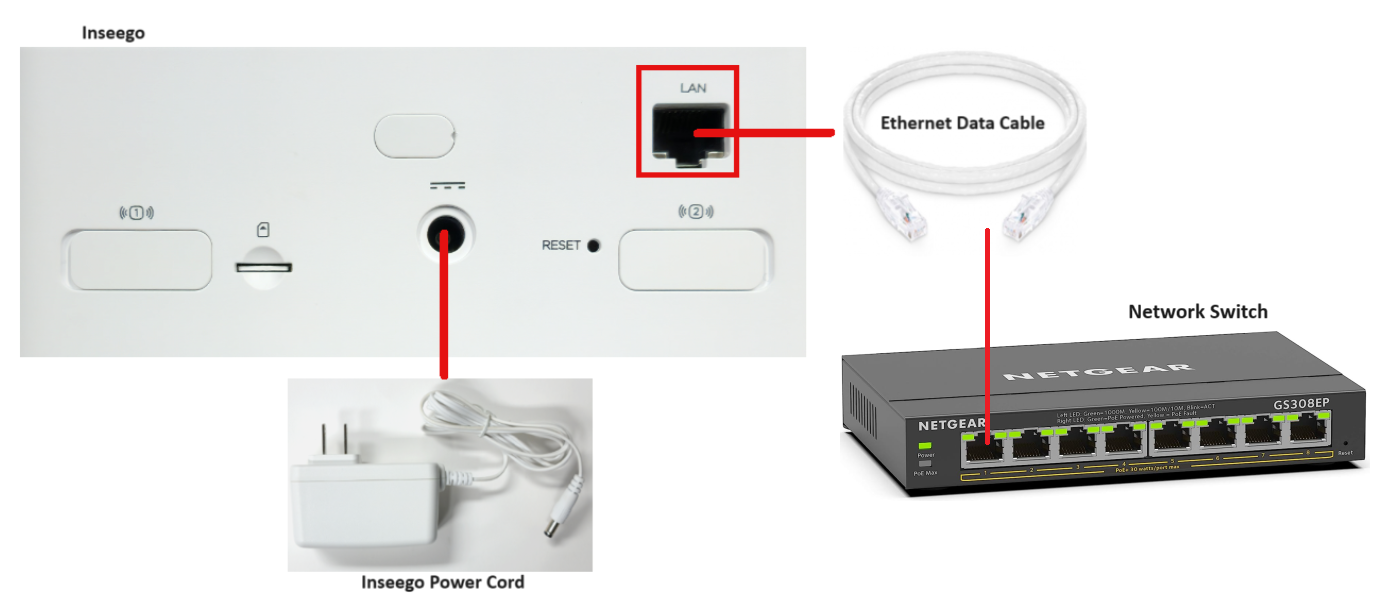

Step 3. Plug the Ethernet/Data Cable to Port 1 of your Network Switch.
(If applicable) The Switch must be in the ON position.

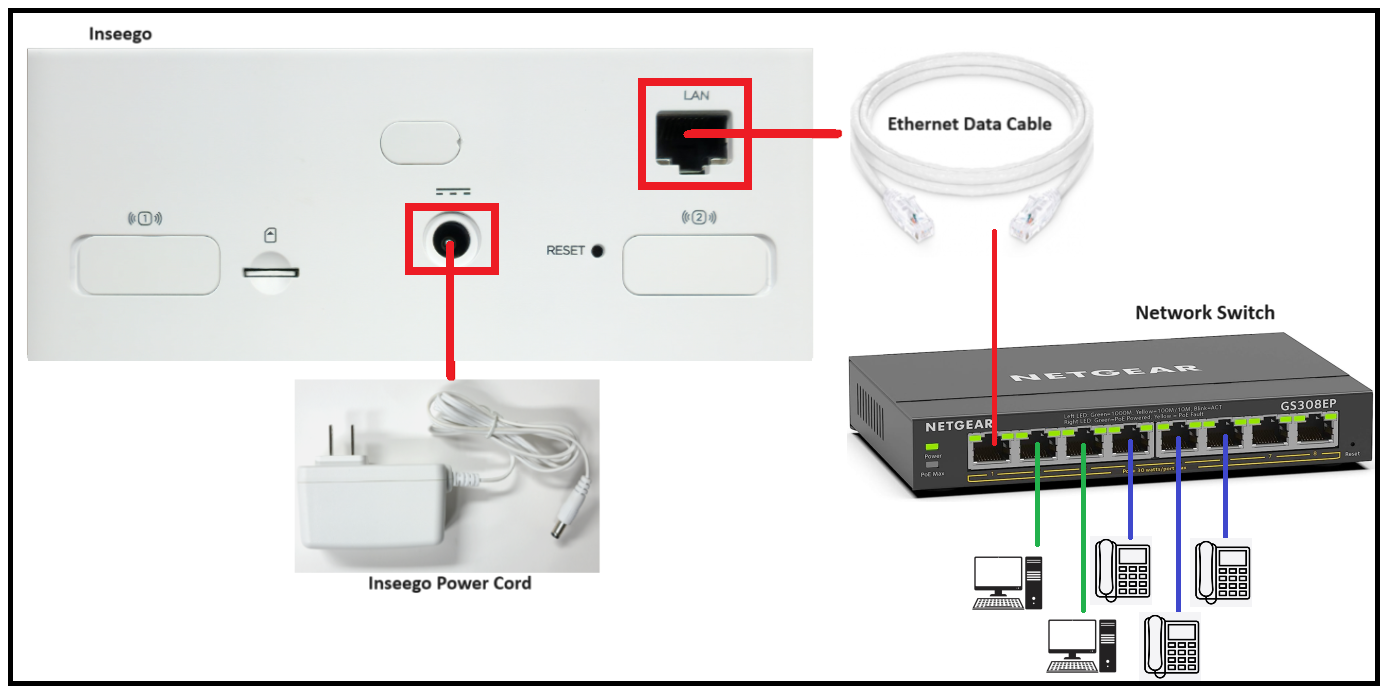

Step 4. Using Ethernet/Data Cables, plug your devices to the remaining Ports in the Network Switch.





Thank you for your business! If you have any questions, please contact our Support Department at (530) ONE-STOP.
